Barrel-Stave Flextensional Projector
SX01
barrel-stave flextensional projector (SX01)
Other Specifications
RATED POWER 2 DUTY CYCLE 450 Wrms
MAX INPUT VOLTAGE 1200 Vrms
Overview
RESONANCE FREQUENCY
1.6 kHz & 9.5 kHz
BEAM ANGLE RADIAL 3DB AT FR
Omnidirectional
BEAM ANGLE AXIAL 3DB AT FR
Omnidirectional
DEPTH RATING
150 m
TRANSMIT VOLTAGE RESPONSE TVR
125 dB re 1 µPa/V @ 1m

The SX01 barrel-stave flextensional projector is a small, low frequency transducer with high output power. It is commonly used for sonar arrays and long distance communications. It has found a number of novel uses including land seismic applications and mine safety monitoring.

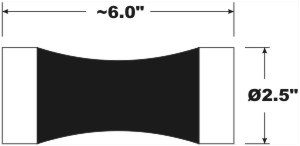

Outline
