Phantom Powered
SA12 Hydrophone Preamplifier
phantom powered preamp for hydrophones (SA12)
Other Specifications
SUPPLY VOLTAGE 5 V DC
MAX INPUT VOLTAGE 30 mVpp
MAX OUTPUT VOLTAGE 550 mVpp
INPUT IMPEDANCE 4.7 MΩ
OUTPUT IMPEDANCE 2 kΩ
TOTAL HARMONIC DISTORTION <1 %
INPUT VOLTAGE NOISE 120 nV/√Hz
CURRENT 180 μA
Overview
GAIN
25 dB

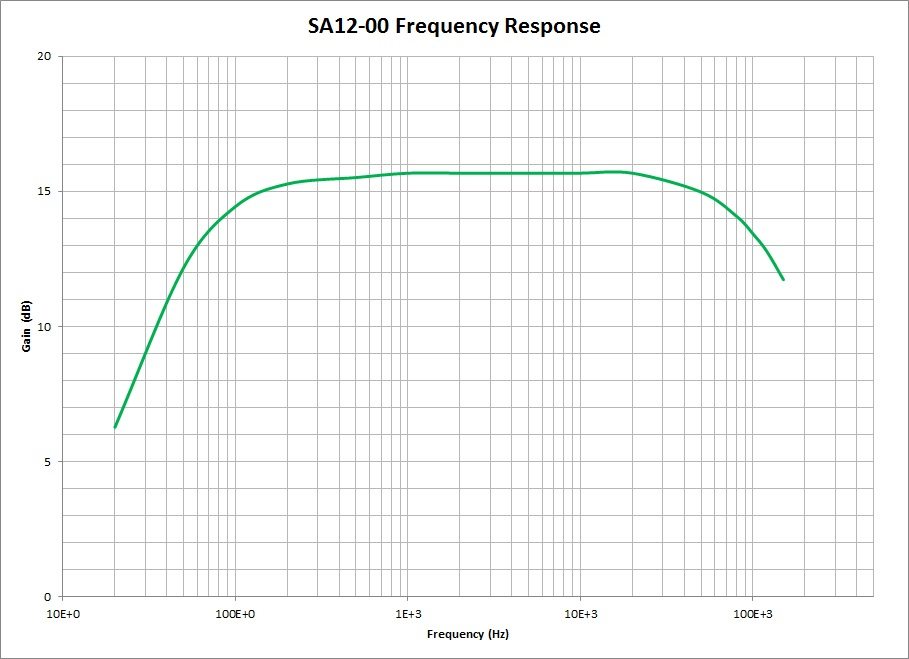

FREQUENCY RESPONSE
60 Hz — 40 kHz

The SA12 is a phantom powered preamp that essentially creates an “electret hydrophone”. It draws power from a microphone jack, making it easy to connect a hydrophone to typical consumer recording devices such as a digital recorder or computer. It is ideal for underwater recordings and cetacean research within the audible range. Available in standard 25 dB and 15 dB configurations, the gain can be customized.

Outline
