14 KHZ FFR

SX148 Free Flooded Ring Transducer

OTHER SPECIFICATIONS

USEABLE FREQUENCY RANGE 3DB FROM FR 7.5 kHz – 12.5 kHz
CAPACITANCE 15.9 nF
CAPACITANCE VARIATION WITH TEMPERATURE +0.3 % per °C
CAPACITANCE VARIATION WITH DEPTH -8 % per 1000m
DISSIPATION 0.007
OPERATING TEMPERATURE RANGE -30 °C – 40 °C
STORAGE TEMPERATURE RANGE -50 °C – 60 °C

OVERVIEW

RESONANCE FREQUENCY
14 kHz (8 kHz “squirter” mode)


BEAM ANGLE RADIAL 3DB AT FR
Omnidirectional


DEPTH RATING
Unlimited


TRANSMIT VOLTAGE RESPONSE TVR
134 dB re 1 µPa/V @ 1m (131 dB “squirter mode”)

The SX148 free flooded ring transducer is comparable to the ITC 2044. It has a primary resonance at 14 kHz and “squirter” mode resonance at 8 kHz. Contact us for more details or to discuss free flooded rings custom designed for your specific application.

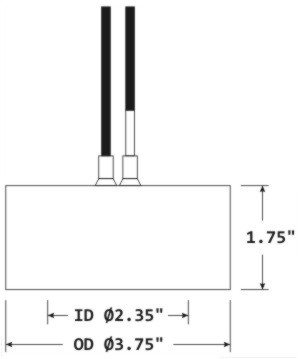

OUTLINE
