LOW FREQUENCY (10 KHZ)

SX116 Free Flooded Ring Transducer

OTHER SPECIFICATIONS

USEABLE FREQUENCY RANGE 3DB FROM FR 6.5 kHz – 13.5 kHz
CAPACITANCE 27 nF
CAPACITANCE VARIATION WITH TEMPERATURE +0.3 % per °C
CAPACITANCE VARIATION WITH DEPTH -8 % per 1000m
DISSIPATION 0.008
OPERATING TEMPERATURE RANGE -30°C – 40°C
STORAGE TEMPERATURE RANGE -50°C – 60°C

OVERVIEW

RESONANCE FREQUENCY
10 kHz (3.9 kHz “squirter” mode)


BEAM ANGLE RADIAL 3DB AT FR
Omnidirectional


BEAM ANGLE AXIAL 3DB AT FR
80° (Toroidal)


DEPTH RATING
Unlimited


TRANSMIT VOLTAGE RESPONSE TVR
128 dB re 1 µPa/V @ 1m

The SX116 is a low frequency free flooded ring transducer. It resonates at 10 kHz and has a “squirter” mode resonance at 3.9 kHz. We offer a number of standard low frequency designs in the 10 kHz range including the SX148 which is comparable to the ITC-2044 cylindrical transducer. Contact us to discuss free flooded rings customized for your specific application.

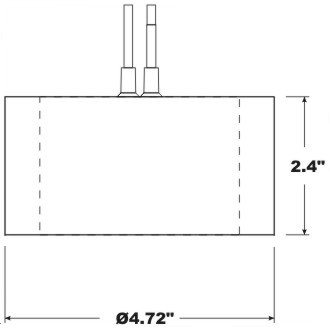

OUTLINE
