BENDER TRANSDUCER

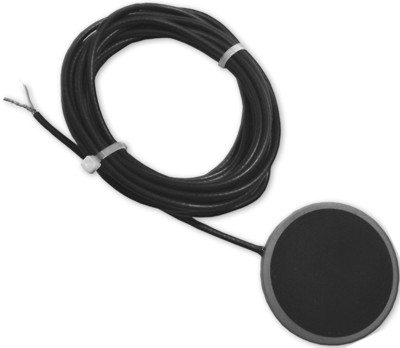

SX53
OTHER SPECIFICATIONS
USEABLE FREQUENCY RANGE 3DB FROM FR 100 Hz – 5 kHz
RATED POWER 2 DUTY CYCLE 0.5 Wrms
OVERVIEW
RESONANCE FREQUENCY
750 Hz


BEAM ANGLE RADIAL 3DB AT FR
Omnidirectional (@ 750 Hz)


BEAM ANGLE AXIAL 3DB AT FR
Omnidirectional (@ 750 Hz)


DEPTH RATING
2 m


TRANSMIT VOLTAGE RESPONSE TVR
110 dB re 1 µPa/V @ 1m

The SX53 displays the primary advantage of bender transducers: it produces a remarkably low frequency in comparison to its size. Contact us to discuss your low frequency transducer requirements.
OUTLINE
