180 KHZ HEMISPHERICAL TRANSDUCER

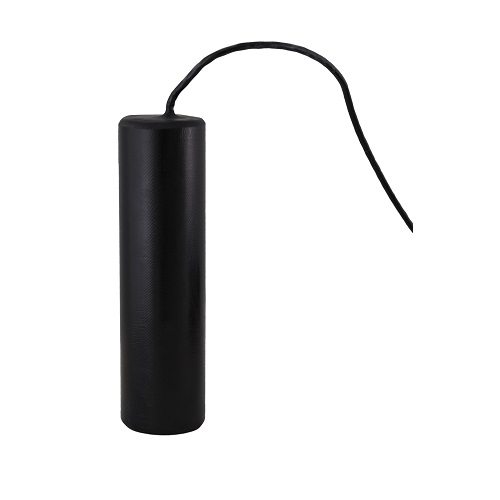

SX76 Hemispherical Transducer

OTHER SPECIFICATIONS

USEABLE FREQUENCY RANGE 3DB FROM FR	170 kHz – 195 kHz
OPEN CIRCUIT VOLTAGE OCV	-204 dB re 1 V/µPa
CAPACITANCE	2.1 nF
DISSIPATION	0.005
OPERATING TEMPERATURE RANGE	-30°C – 40°C
STORAGE TEMPERATURE RANGE	-50°C – 60°C

OVERVIEW

RESONANCE FREQUENCY
180 kHz

BEAM ANGLE RADIAL 3DB AT FR
Omnidirectional

BEAM ANGLE AXIAL 3DB AT FR
Omnidirectional (Hemispherical)

DEPTH RATING
100 m

TRANSMIT VOLTAGE RESPONSE TVR
120 dB re 1 µPa/V @ 1m

The SX76 is a highly customizable hemispherical transducer. The body can be modified to include mounting points or to house an integrated transformer or preamplifier. The cable type, exit point and termination (i.e. connector) can easily be changed to meet specific requirements. Plus, the dimensions of the entire device can be scaled to shift the centre frequency. Contact us to discuss your specific requirements for a spherical transducer.

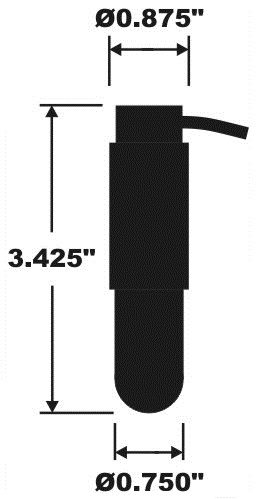

OUTLINE
