SQ42-00 SPHERICAL HYDROPHONE Posted by Netgain Admin November 6th, 2019

SQ42-00 Hydrophone

OTHER SPECIFICATIONS

VOLTAGE SENSTIVITY -215 dB re 1 V/μPa @ 20ºC (2 V/bar)
FREQUENCY RESPONSE 1 Hz to 400,000 Hz

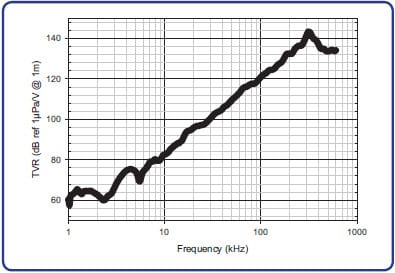

TRANSMIT VOLTAGE RESPONSE

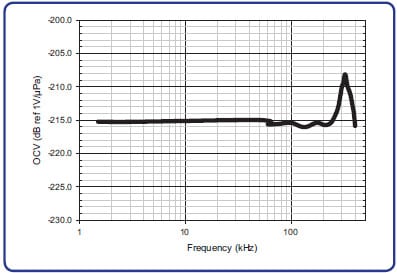

RECEIVE VOLTAGE RESPONSE

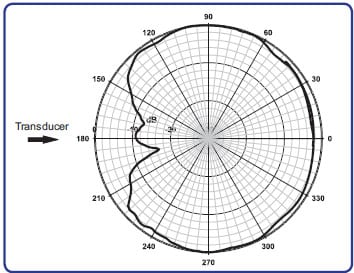

Directivity Pattern at 50 kHz, Axial Plane

OVERVIEW

TRANSMIT SENSITIVITY

143 dB re 1 ìPa/V @ 1 m


RECEIVE SENSITIVITY
-215.0 dB re 1 V/ìPa @ 20ºC


RESONANCE FREQUENCY
320 kHz


CAPACITANCE

1.8 nF ± 15% @ 20ºC


OPERATING DEPTH

3500 m

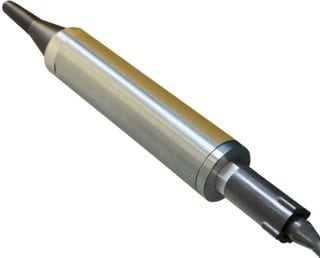

The SQ42-00 hydrophone is made with a piezoelectric ceramic sphere. The piezo element offers transmit capability at a 320 kHz resonance and a broadband receive capability. Mounting options and connector types can be modified to meet customer requirements. The piezo sphere can also be wired in series, to increase receive sensitivity. The SQ42-00 can be paired with a preamplifier with a standard 40 dB gain, for an effective sensitivity of -175 dB. Custom preamps are available. Contact us to discuss your specific requirements.

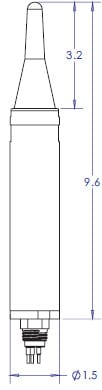

OUTLINE
